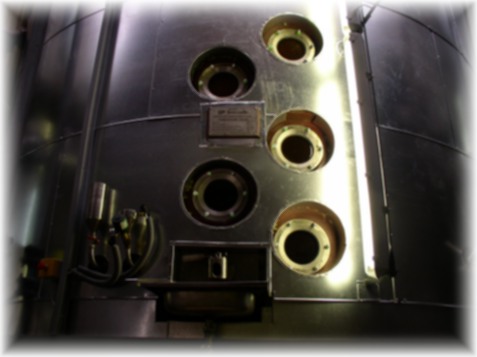

Vacuum pan

  1. The equipment is destined for evaporating crystallization of sugar solutions.
  2. Delivered equipment is supplied with controlling of sugar boiling

Tubular vacuum pan with forced circulation

height of heating chamber 1300 mm

The basic technical parameters:
Diameter of the equipment (mm) Diameter of the circulation pipe (mm) Number of pipes Heating area (m2) Weight of massecuite (t)
4,000 1,500 820 330 40
4,500 1,800 1,012 415 60
5,000 1,900 1,360 550 75
5,500 2,000 1,690 690 90
6,000 2,100 2,080 845 110


Example of achieved values:
          Massecuite: A
          Steam: vapour from the 3rd body
            of evaporator
          Steam pressure: 21 kPa
          Vacuum: - 690 Pa
          Yield of crystal mass: 46 %
          Dry substance of the massecuite:
            92.5 %
          Boling time: 3 hours
          Crystal size: 0.78 mm
          CV: 31 %
